OXIMISER PRO

ADVANCED BATTERY MANAGEMENT SYSTEM

Oxford has been designing market-leading OXIMISER battery optimisers for over 20 years.

Having launched our first battery optimiser over two decades ago, we understand the importance of ‘user-centric’ design, our new Oximiser Pro range has been engineered to take ‘intelligent’ battery optimisers to another level.

Equipped with sophisticated diagnostic capabilities, the Oximiser Pro seamlessly detects and rehabilitates damaged batteries, utilising cutting-edge, proprietary charging profiles to restore multiple battery types.

Requiring no prior technical expertise, this advanced system has been designed to ensure optimal performance for any battery type, with plug-and-play automated functions.

Its intelligent monitoring system continuously oversees the battery’s condition, providing long-term maintenance and significantly extending the battery lifespan.

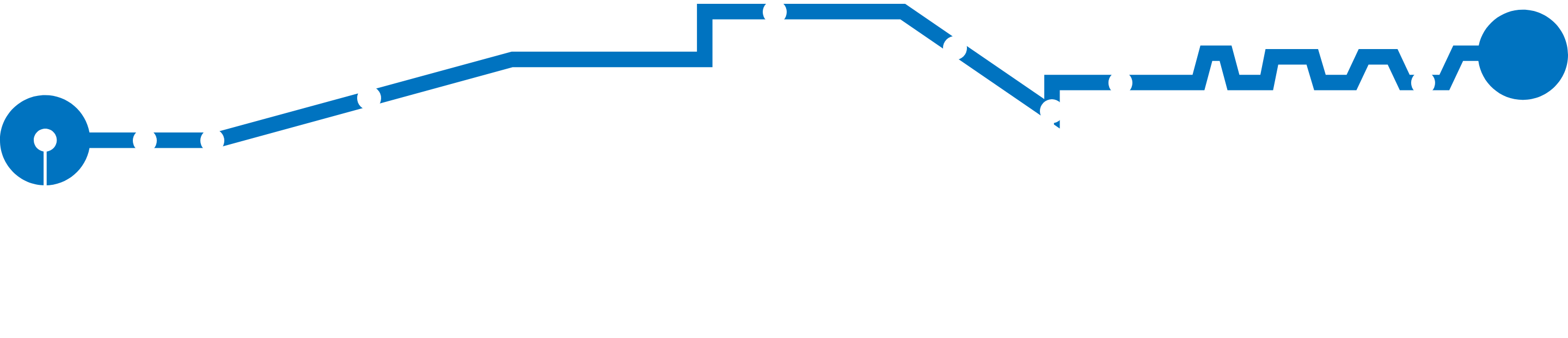

1. Polarity Test

Upon connection to the battery, a polarity check is made to ensure that the polarity is correct. The digital (LCD) display will show a flashing battery warning sign if the connection polarity is incorrect.

2. Analyse

The Oximiser will analyse the initial voltage to determine what charge rate should be applied to ensure a safe/efficient charge.

3. DESULFATION

Repairs damaged batteries automatically during the charging profile, bringing them back to life.
(Not LiFePO4) - (1250, 2000, 5000 Models Only)

4. SOFT START MODE

To reduce shock to the battery the Oximiser will start by applying a low current, this is used to protect the battery and optimise the bulk charging.

5. BULK MODE

Once safe to do so, the Oximiser will then supply a constant current of 5.0 Amps until the battery is 80-90% recharged.

6. ABSORPTION MODE

The charge current will start to drop off when the charge program is nearing 80-90% complete, the charging Amps will continue to drop until the voltage of the battery has reached the desired completion voltage.

7. VOLTAGE CHECK

After the charging program has been completed, the Oximiser will cut charge and observe the battery to ensure the voltage of the battery is stable.

8. MAINTAIN MODE

This will be shown by a solid 100% charged diagram, the Amps will then drop to maintain a set float voltage.

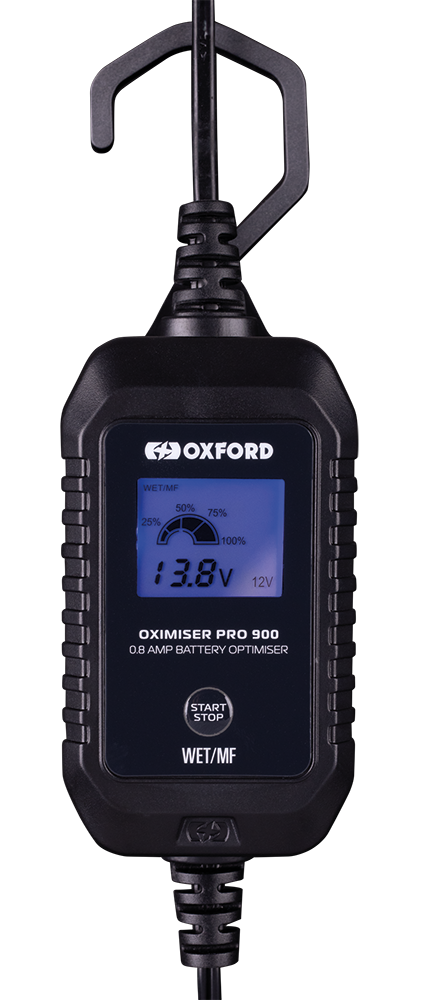

Oximiser Pro 900

ADVANCED BATTERY MANAGEMENT SYSTEM

0.8A 6/12V

The Oximiser Pro 900 charges 6 and 12V WET/MF batteries at a maximum charge rate of 800mA (0.8Amps). The intelligent 7-stage automatic program ensures that every battery is correctly and safely charged to its optimum voltage before switching into maintain mode - extending the life of the battery.

Weatherproof IP65

7 Stage Automatic Charging

Compatible with: WET / MF


EL201 // £59.99

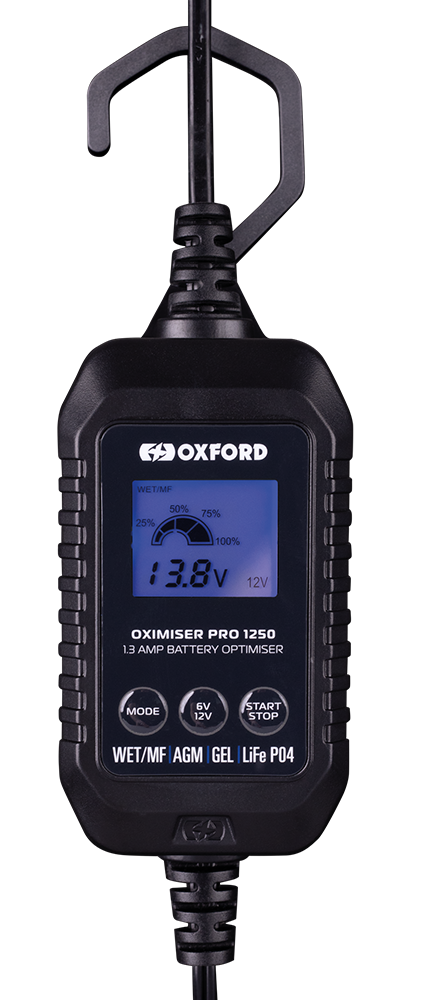

Oximiser Pro 1250

ADVANCED BATTERY MANAGEMENT SYSTEM

1.3A 6/12V

The Oximiser Pro 1250 will charge a range of 6/12V batteries at a max charge rate of 1300mA (1.3Amps). The intelligent 8-stage automatic program ensures that every battery is correctly and safely charged to its optimum voltage before switching into maintain mode - extending the life of the battery.

Weatherproof IP65

8 Stage Automatic Charging

Compatible with multiple battery types


EL202 // £79.99

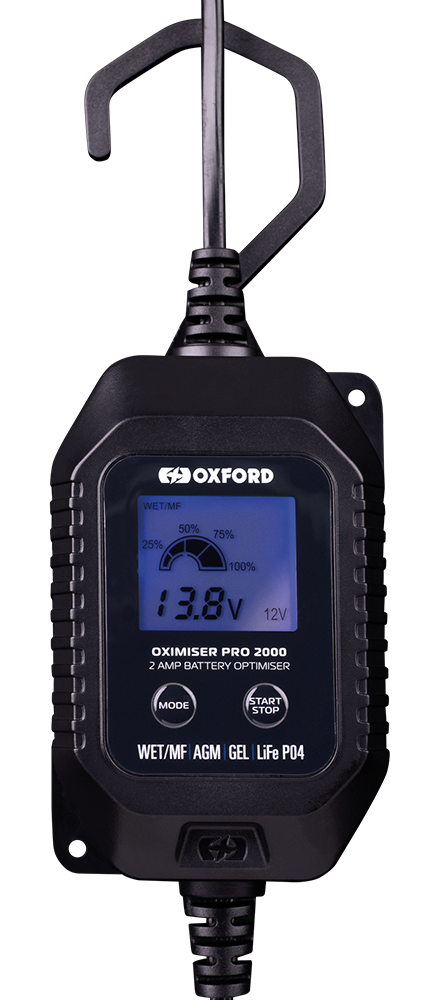

Oximiser Pro 2000

ADVANCED BATTERY MANAGEMENT SYSTEM

2.0A 12V

The Oximiser Pro 2000 will charge a range of 12V batteries at a max charge rate of 2000mA (2Amps). The intelligent 8-stage automatic program ensures that every battery is correctly and safely charged to its optimum voltage before switching into maintain mode - extending the life of the battery.

Weatherproof IP65

8 Stage Automatic Charging

Compatible with multiple battery types


EL203 // £99.99

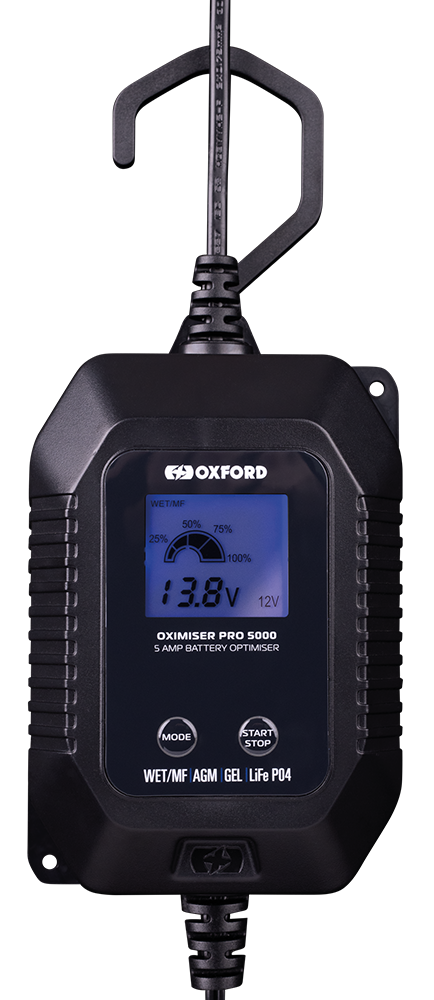

Oximiser Pro 5000

ADVANCED BATTERY MANAGEMENT SYSTEM

5.0A 12V

The Oximiser Pro 5000 will charge a range of 12V batteries at a max charge rate of 5000mA (5 Amps). The intelligent 8-stage automatic program ensures that every battery is correctly and safely charged to its optimum voltage before switching into maintain mode - extending the life of the battery.

Weatherproof IP65

8 Stage Automatic Charging

Compatible with multiple battery types


EL204 // £119.99

OXIMISER PRO RANGE 900 1250 2000 5000

Battery

Voltage 6/12V 6/12V 12V 12V
Max Charge Rate 0.8A 1.3A 2A 5A
Sizes 3.5/20AH 3.5/40AH 8/80AH 40-120AH

Compatibility

WET / MF
AGM
GEL
LIFEP04 12V Only

Features

Removable Hanger
Weatherproof Body
LCD Dsiplay
Rubber Feet
Mounting Points
Waterproof Cable Exit
Winter Grade Cable

Charging Stages

Polarity Test
Analyse
Desulfation
Soft Start
Bulk
Absorption
Voltage Check
Maintenance

For Use With

Scooter
Bikes
Cars
Vans / Campers
